Model
JS-FP

Item specifics

Type
Plate flange/ flate flange
Usages
water, gas and oil
Brand
JS FITTITNGS
Material
A105, Q235, 16Mn, alloy steel

Product review

Description

 150lb and 300 Lb. Carbon Steel plate flanges for PED pipes in Drainage system
JS FITTINGS Plate flanges with different surface treatment
The China National Day Holiday is coming, in order to avoid be affected by the National Day military parade, JS FITTINGS made some stock for the urgent orders. There are parts of anti-rust oil flange, black painting flange and yellow painting flange.
yellow painted plate flange
Yellow painted plate flange
black painted flange
Black painted flange
anti-rust oil plate flange
Anti-rust oil plate flange
Specification of 150 Lb. plate flanges

SIZE

THICK.

LD.

O.D.

B.C.

NO.

DIA.

1

5/8

1.36

4-1/4

3-1/8

4

5/8

1-1/4

5/8

1.70

4-5/8

3-1/2

4

5/8

1-1/2

5/8

1.95

5

3-7/8

4

5/8

2

5/8

2.44

6

4-3/4

4

3/4

2-1/2

5/8

2.94

7

5-1/2

4

3/4

3

5/8

3.57

7-1/2

6

4

3/4

4

5/8

4.57

9

7-1/2

8

3/4

5

3/4

5.66

10

8-1/2

8

7/8

6

3/4

6.72

11

9-1/2

8

7/8

8

1

8.72

13-1/2

11-3/4

8

7/8

10

1

10.88

16

14-1/4

12

1

12

1

12.88

19

17

12

1

14

1

14.14

21

18-3/4

12

1-1/8

16

1

16.16

23-1/2

21-1/4

16

1-1/8

18

1-1/16

18.18

25

22-3/4

16

1-1/4

JS FITTINGS produce and supply slip-on plate flanges in material of carbon steel, mild steel,  alloy steel and stainless steel.
We are professional in ASME/ANSI flanges, JIS flanges, GOST flanges, EN flanges, SABS flanges, BS flanges and DIN flanges.
If you are interested to know more details of JS FITTINGS and have pending orders, please contact us directly!

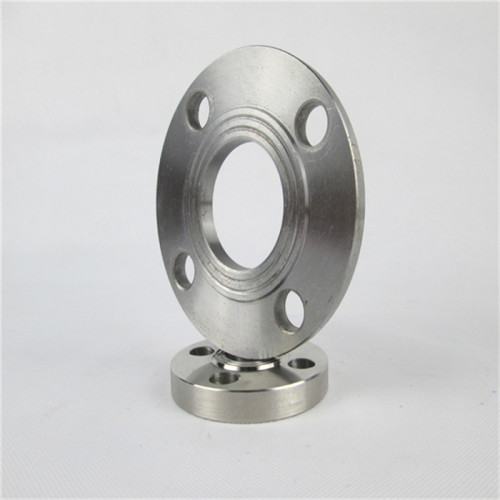

machining flanges
