Sch 160 carbon steel pipe elbows to Egypt
180 degree carbon steel pipe fittings of ASME B 16.9 ASTM a234wpb, diameter 1"-48", thickness sch 160, made for Egypt customers. Warranty time 5 years, can be used for water, oil and gas pipeline system.

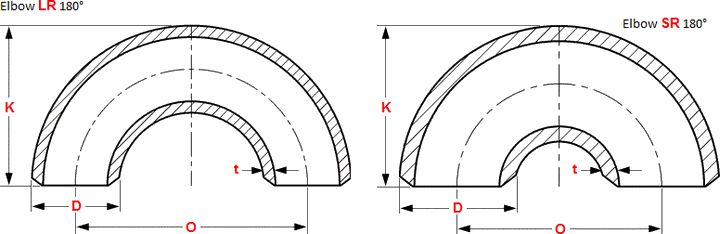

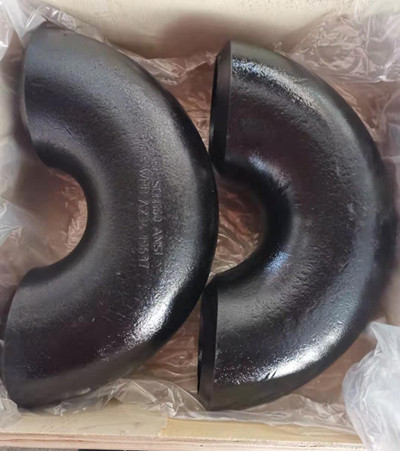

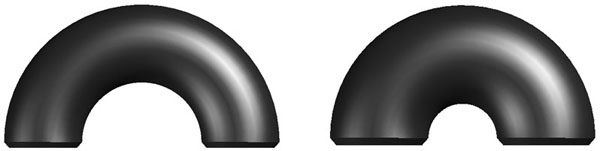

The function of a elbow is to change direction or flow in a piping system. By default, there are 5 opportunities, the 45°, 90° and 180° elbows, all three in the "long radius" version, and in addition the 90° and 180° elbows both in the "short radius" version.

NPS

O.D.
D

180° Long Rad

180° Short Rad





Center to
Center
O

Back to
Face
K

Center to
Center
O

Back to
Face
K

1/2

21.3

76

48





3/4

26.7

76

51





1

33.4

76

56

51

41

1.1/4

42.2

95

70

64

52

1.1/2

48.3

114

83

76

62

2

60.3

152

106

102

81

2.1/2

73

190

132

127

100

3

88.9

229

159

152

121

3.1/2

101.6

267

184

178

140

4

114.3

305

210

203

159

5

141.3

381

262

254

197
