SABS 1123 flanges dimensions|SABS 1123 class 1000 flanges standard
- Model
- JS-TH
Item specifics
- Surface treatment
- Anti-rust Oil
- Seal
- Raised face Flat face
- Connection
- Welding
Review
Description
SABS 1123 flanges dimensions|SABS 1123 class 1000 flanges standard
Details of Surface Treatment of SABS flanges
The advantage is that there is no need for welding and the additional torque generated by flange deformation on the tube or pipe is very small. The shortcoming is the flange thickness is big, the cost is high. Suitable for high pressure pipe connection.
1. The yellow painting is bright and dazzling, it is needed in the markets of South East of Asia and Africa.

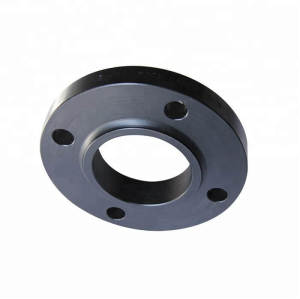

2. Black painting is looks more seriesly than other color, it is needed in the markets of South east and mild east of Asia.
3. Anti-rust oil is popular in the most markets of the world, and it's the cheapest treatment way.
Information of JS FITTINGS Flanges
|

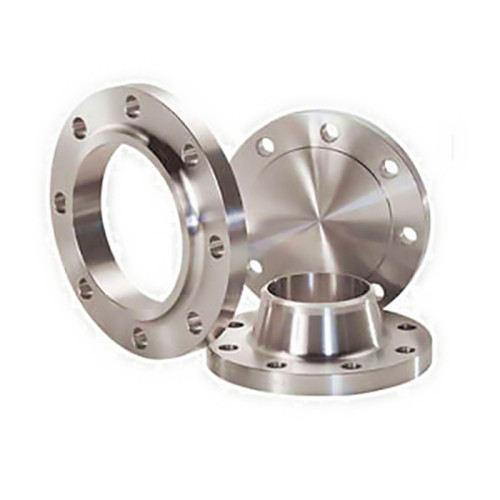

Types of SABS 1123 flanges
|
SABS 1123 Weld Neck Flanges
SABS 1123 Thraded flanges SABS 1123 forged flanges SABS 1123 Socket flanges SABS 1123 Blind Flanges |
||
|
Material of SABS 1123 flanges
|
Carbon steel: ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80)
|
||
|
SABS flanges sealing surface types
|
Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove
|
||
Certificate | ISO 9001 Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc | ||
Brand | JS FITTINGS | ||
Customized flanges | need drawing and technology data | ||
Delivery of JS FITTINGS SABS flanges
