Seamless Steel Pipe Elbow in the standard of GOST 17375 30753

Seamless Steel Pipe Elbow in the standard of GOST 17375 30753

Name: Seamless Steel Pipe Elbow in the standard of GOST 17375 30753
Brand: JS FITTINGS
SKU: 18225033
Rating: 4.75 (10 reviews)

Model: JS-E

Item specifics

Size: DN 25-DN 800

Smaller size than DN 600: Seamless

Bigger than DN 600: welded

Color: primary color

OD: 323.9mm

Review

Description

Seamless 20 Grade steel pipe fittings in standard of GOST 17375 30753

Specification of JS FITTINGS GOST Elbows

Size:	Seamless elbow:1/2"~24" DN15~DN600,Welded Elbow: 4"~78 DN150~DN1900
Radius:	L/R Elbow( 90deg & 45deg & 180deg.),S/R Elbow (90deg & 180deg.)
Wall Thickness:	2MM-32MM
Manufacturing standard:	GOST 17375-2001, GOST 30753-2001
Bending Angle:	Degree 30, 45, 60, 90, 135, 180 and also could manufacture according to the angles given by the clients.
End Bevel:	According to the bevel of welding pipe fittings construction
Packing:	plywood case or pallet.

JS FITTINGS is a manufacturer & supplier of a huge range of carbon steel pipe fittings such as Butt weld (BW) fittings, Socket Weld (SW) fittings, Threaded (THD), screwed fittings, tube fittings, instrumentation fittings, Especially, Long and Short Radius Elbows for Russia, Ukraine, Belarus and other CIS countries. JS FITTTINGS has export substantial which includes many bespoke or dedicated items as well as the full range of all standard industrial fittings such as Elbow 45°, 60°, 90°, 180° long/short radius, straight Tees, reducing Tee, concentric reducers, eccentric reducers, end cap, Lap joint Stub End in carbon steel material under GOST standard in Russia.

Top manufacturer of Seamless Steel Pipe Elbow in the standard of GOST 17375 30753, Manufacturer of Grade 20 Steel Elbow.

Different producing links of GOST Elbows

Pushing GOST elbows

20 grade steel and Q235 Elbows in general size with lower pressure won't have heat treatment, because the temperature will be about 800 degrees during pushing.

Forming GOST elbows

The forming link is necessary for each elbows. JS FITTINGS supply GOST standard elbows to Moscow Russia.

Beveling the ends of GOST elbows

According to the standard of GOST 17275-2001, the ends of the elbows will be beveled. JS FITTINGS has distributers in Saint Petersburg Russia.

Details of GOST Elbows

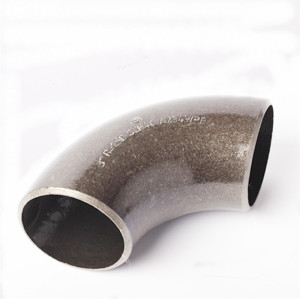

Carving marks on the ends of the GOST Elbow

Fom DN 25 to DN 150, carving marks are the most suitable style for the Elbows.

JS FITTINGS supply Novosibirsk Russia 90 degree elbows without black painting.

Painting marks on the middle of the GOST Elbows

For Size bigger than DN 150， customers can choose painting marks, but the cost will be a little bit different.

Clients in Russia like paninting marks more than carving marks.

Back arc of the GOST Elbows

JS FITTINGS supply standard elbows, any inspection and testing is acceptable.

Seamless Elbows price in Rusia.

Details of Package

GOST Elbows with pallets

Elbows with smaller size will be packaged by pallets and plywood cases. JS FITTINGS produce standard elbows for Russian market.

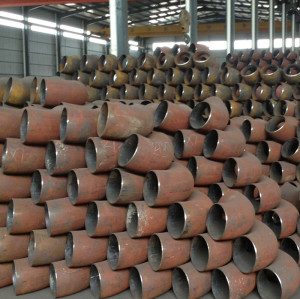

GOST Elbows without packages

When there are bigger size and smaller elbows can be put in the bigger ones, no packages is the most economics way. Seamless 20# steel pipe fittings are popular than seam pipe fittings in Russian market.

Usage of JS Elbows

JS FITTINGS supplies high quality elbows, tees, reducers and other pipe fittings for the pipelines of construction of building, ship making, boiler mills, nuclear power plant, machinery equipment, bridge, thermal power plant, Oil and gas transportation project, Liquefied petroleum gas project, Water treatment project, and Fire piping system. Because of the market demands, most pipe fittings are without surface treatment and anti-rust treatment. The advantage of Russian pipe fittings is much easier for welding together with pipe joints.
