ASTM A234 WPB Carbon Steel Tee
- JS FITTINGS
- Issue Time

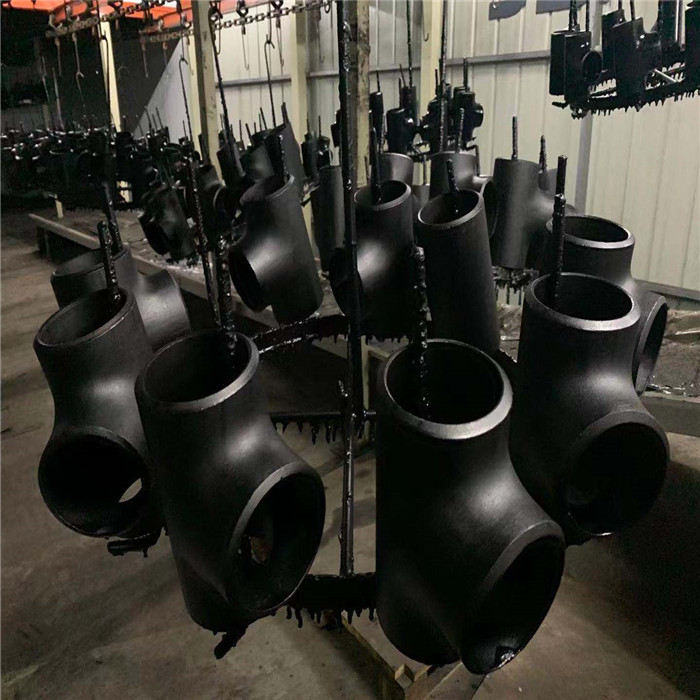

ASTM A234 gr WPB tee is a type of carbon steel fitting used for Piping connection in all industrial plants such as Oil & Gas, Petrochemical etc.
ASTM A234 WPB Pipe Fittings
ASTM a234 WPB reducer, ASTM a234 WPB concentric reducer, ASTM a234 WPB elbow, etc. ASTM a234 WPB pipe fittings include carbon and alloy steel material for moderate and high-temperature services. It covers both seamless and welded pipe fittings. It is applied in pressure pipelines and in pressure vessel fabrications. a234 WPB carbon steel fittings are known to deliver exceptional performance. It is used in various industries like power plants, petroleum industries, fabrication industries, oil and gas industries, construction and chemical industries, etc. The process of ASTM A234 WPB Elbow manufacturing is called “wrought” which means it could be forged or cast. It is divided into two categories that define the distance over which they alter heading; the centerline of one conclusion to the inverse confront. ASTM a234 WPB reducer is made from steel pipes and large sizes pipe fittings are commonly manufactured in pieces and welded together. tee ASTM a234 gr WPB is carbon steel fittings that are used for piping connection in industrial plants such as Oil & Gas, Petrochemical, etc. It is manufactured from the plate, pressed in two halves with three weld seams. A234 gr WPB concentric reducer is manufactured from the plate with one weld seam or with two weld seams on the basis of the size requirement. concentric reducer is cone-shaped which is used when there is a shift in diameter between pipes. It is used to join pipe sections or tube sections on the same axis. carbon steel ASTM a234 WPB cap is a protective device and is used to protect pipe ends of various shapes. The major reason for using pipe caps is to waterproof the connections and is also useful to close the ends of hydraulic or pneumatic tubes and pipes.
Carbon Steel Reducing Tee
ASTM A234 gr WPB tee is a type of carbon steel fitting used for Piping connection in all industrial plants such as Oil & Gas, Petrochemical, etc. All ASTM A234 gr WPB tee, SA234 Grade WPB Pipe Reducing Tee, ASTM A234 WPB Barred Tee & ASTM A234 WPB Carbon Steel equal tees are produced from European sourced raw material at Neelcon Steel. We offer these ASTM A234 Wpb Tee in sizes 6” nb to 40” nb and thicknesses 5mm to 35mm. All Tee ASTM A234 Gr Wpb are manufactured from the plate, pressed in two halves with three weld seams. We offer 100% radiography on all ASTM A234 Tee welds as standard. ASTM A234 WPB carbon steel pipe tees connect three pipes or other fittings, the equal tee has three same dimensions while the reducing tee has one smaller outlet.
It is highly demanded in moderate and high-temperature applications and long-distance gas or liquid transportation. Because of the features of economic, large size range, strong and stable joint, which also makes it more prevalent than other types.
A234 WPB Reducing Tee Dimensions
Standard: ASME B 16.9, SH3408, HG/T21635, 21631, SY/T0510
Size Range: 3/4″ to 48″ / DN20 to DN1200
Thickness: Sch 10, 20, STD, 40, 80, 100, 120, 140, 160, XXS
Form: Seamless or Welded
Surface: Black Primer, Galvanized, PE Coated.
